1. Summary

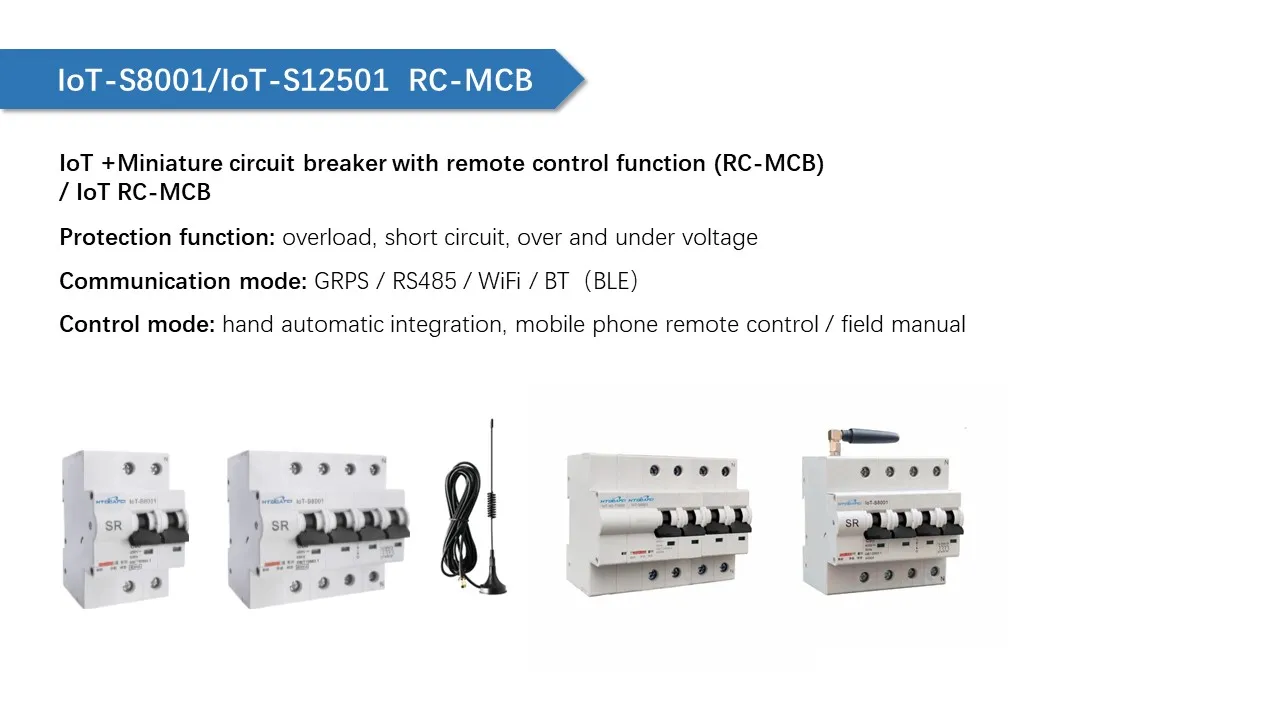

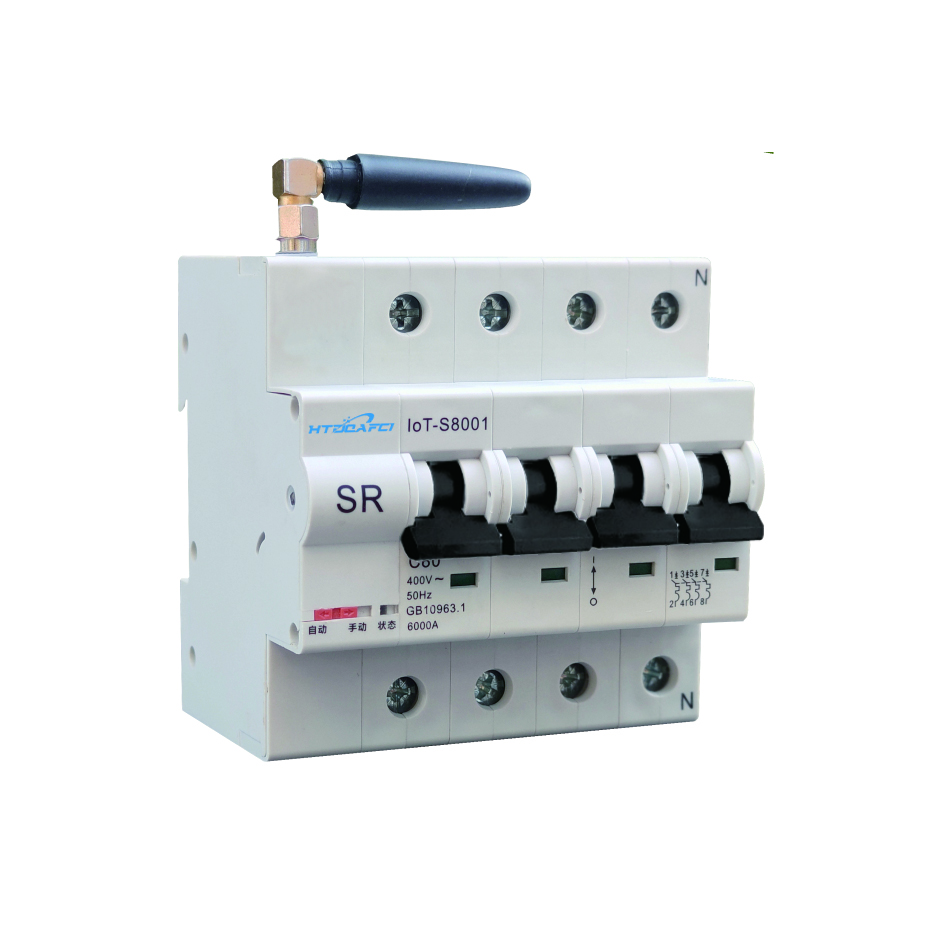

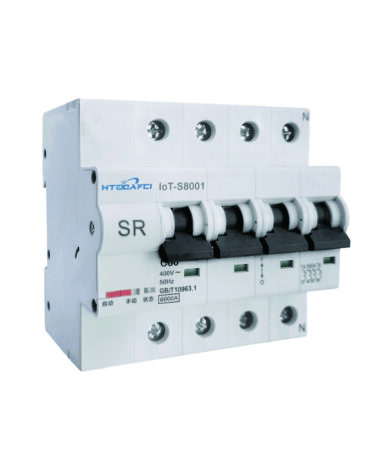

Hantu IoT S8001series smart circuit breakers are used for smart safe power consumption and energy consumption management system.

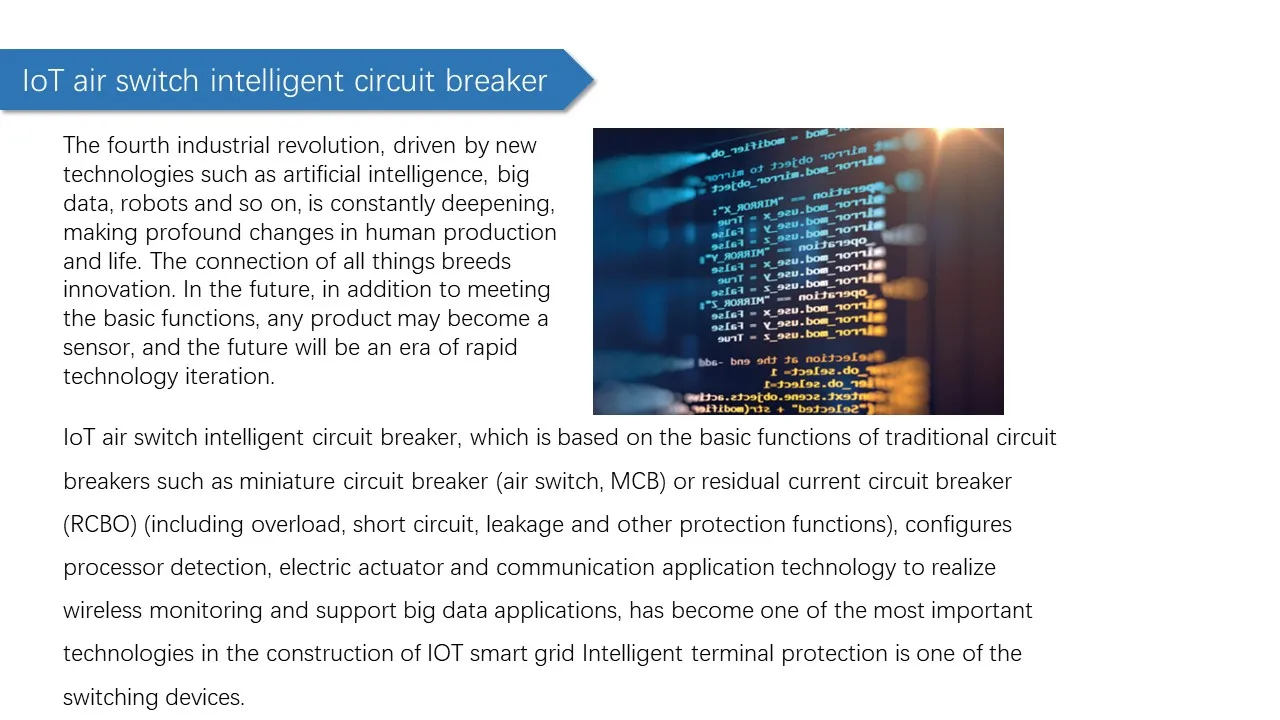

The product is an smart circuit breaker for the Internet of things, which uses electronic technology to control the normal operation of traditional circuit breaker. It has remote opening and closing control, local mode selection, timing opening and closing settings, etc.
2.Functions
·Remote control: remote opening and closing, timing task;
·Local control: local opening and closing, mode selection;
·Short circuit protection: automatic trip in case of short circuit fault;
·Networking module function: built in networking module WiFi, through networking transmission, realize remote control at the app end;
·Independent power supply (gateway function will be added later)

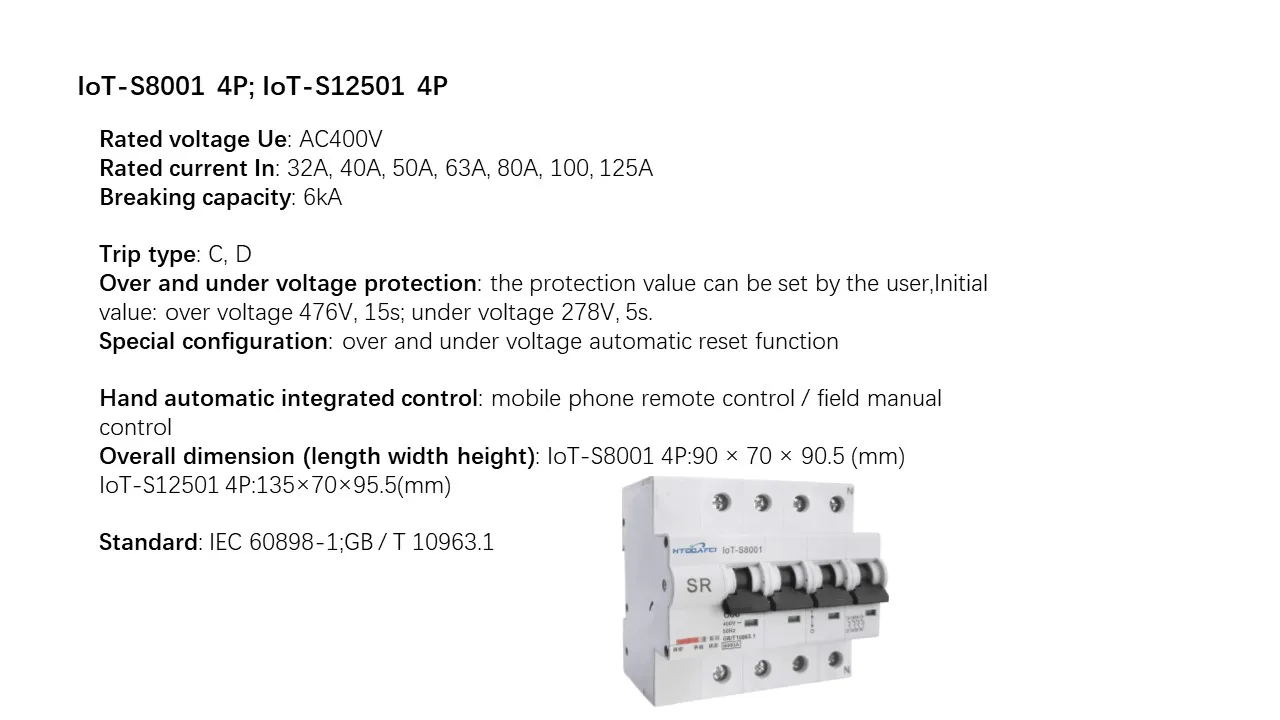

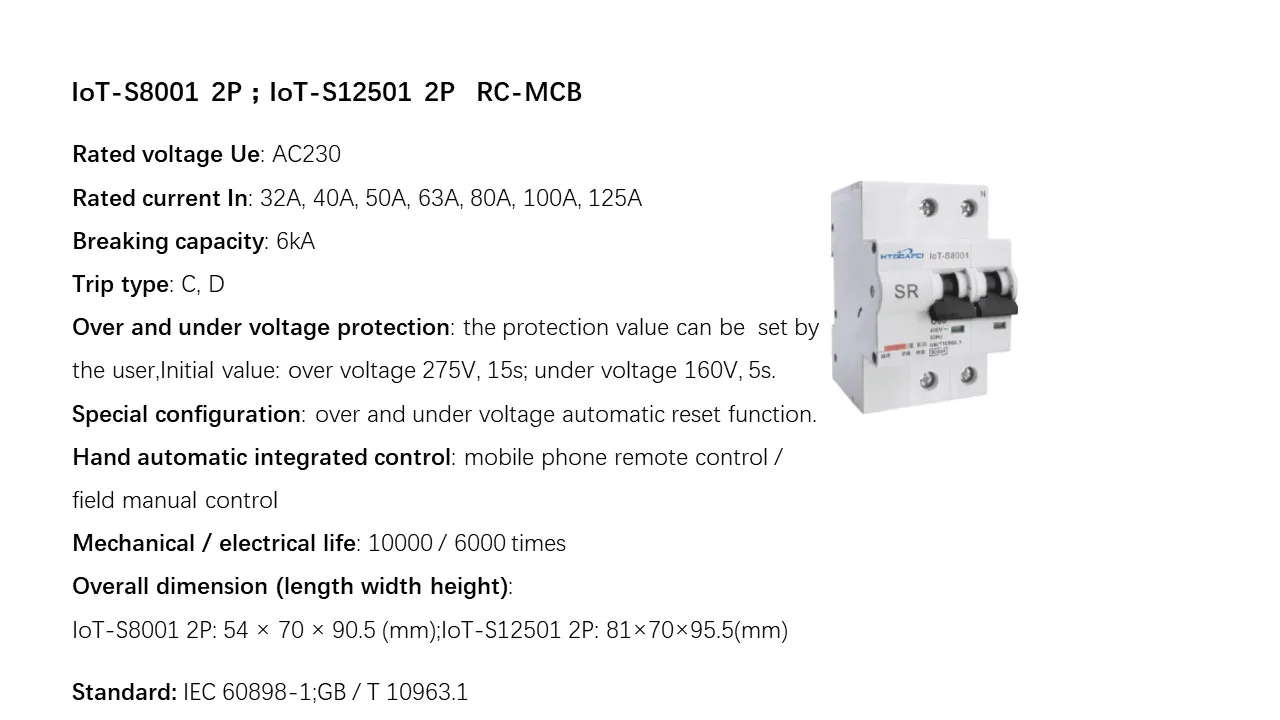

3.Specification parameters
Rated Voltage 220V/380Vac
Rated current 32,40,50,63,80,100,125A
Type of instantaneous release C or D
Mechanical life (0 ~ C) ten thousand
