Model Number
|
HTDS-63
|
|
Pole
|
2P/4P
|
|
Rated Frequency
|
50Hz
|
|
Rated Voltage
|
230V
|
|
OEM ODM
|
OEM ODM
|
|
Standard
|
IEC60898-1/GB10963.1
|
ADVANTAGE:

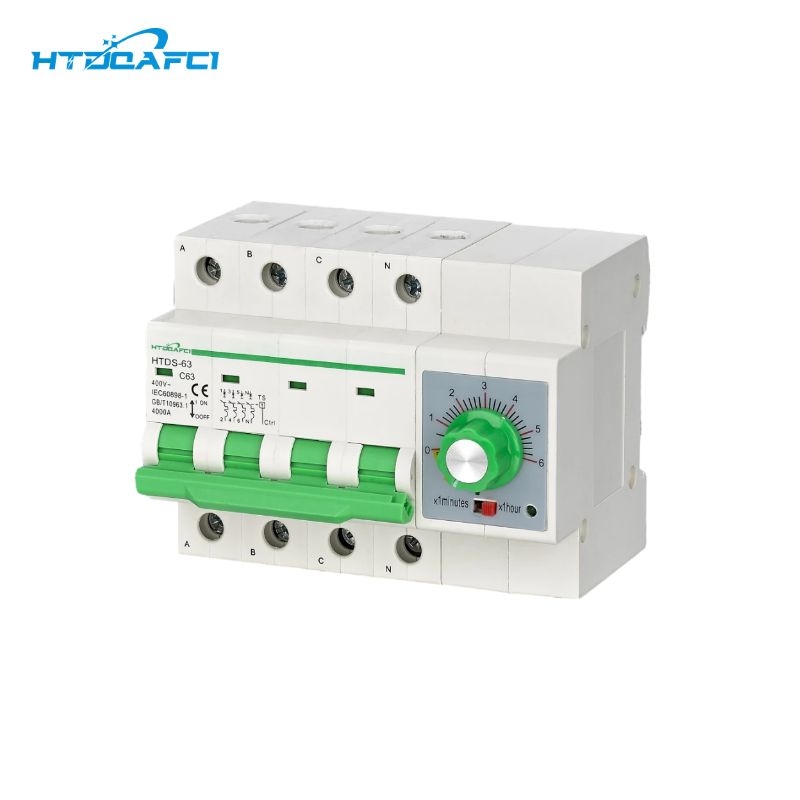

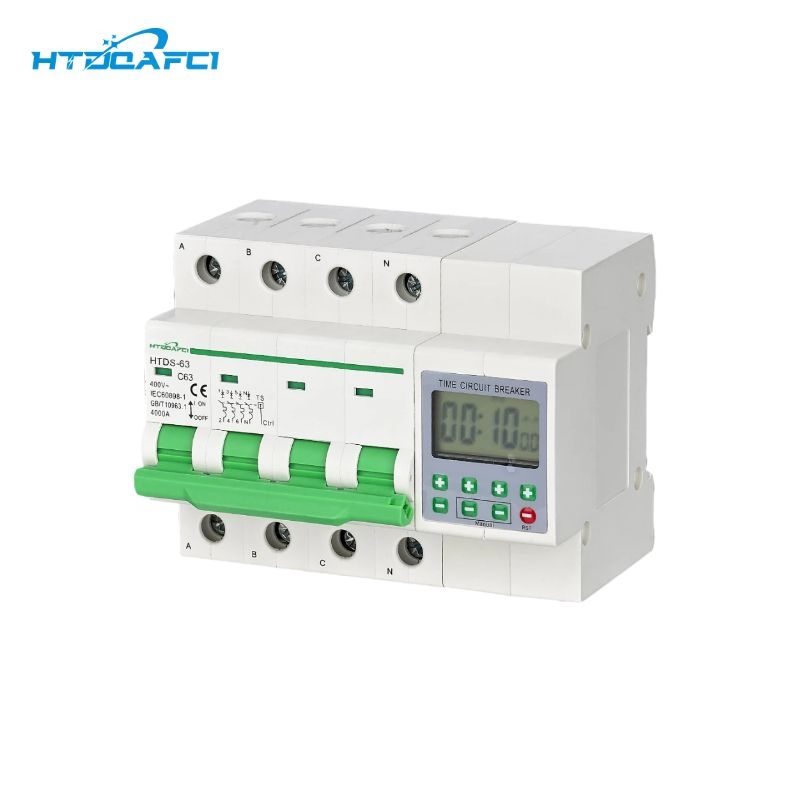

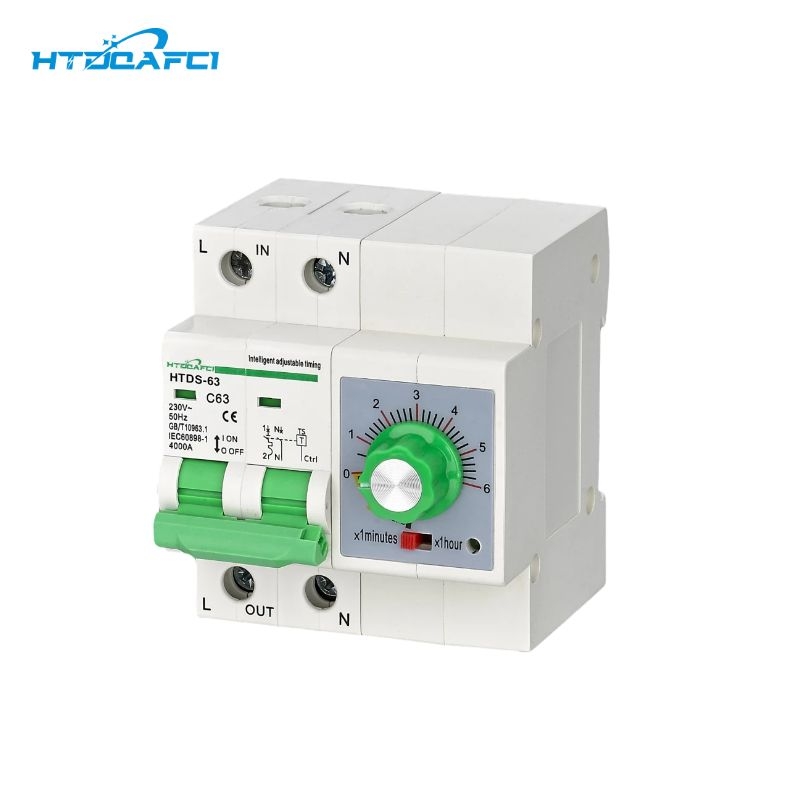

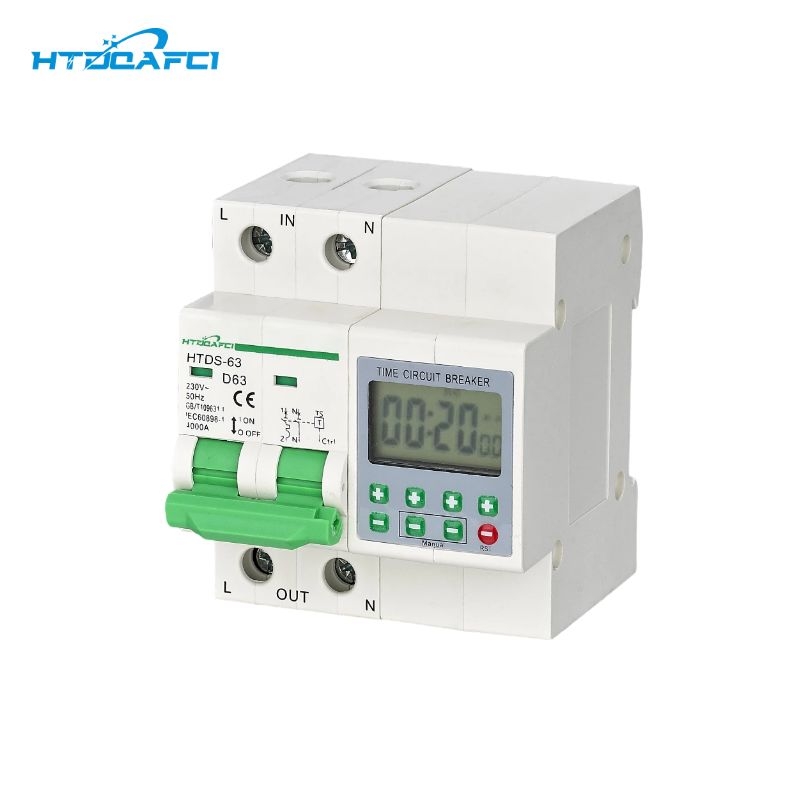

Intelligent adjustable time switch
Energy conservation
Security Reliable
Knob adjustment
smart adjustable time circuit breaker introduction
Product description:
The circuit breaker is in the state of closed “switching on” and the green indicator light is on. The circuit breaker is in the state of disconnected “switching off” and power off when the handle is up.
Main applications
Hantu Electric intelligent adjustable timing circuit breaker, mainly used in 50Hz single-phase 230V, current to 63A circuit, the product has overload, short circuit, protection and timing function.
Products are widely used in the kinds of water pump supply (discharge) water, battery car charging, the National Bureau of Water Resources transformation, outdoor farmland irrigation, household appliances timing, most suitable for use in some local areas need to be limited by time, unattended electric places .
This product is currently a domestic one of the most advanced, the most affordable economic products.
Wiring Instructions

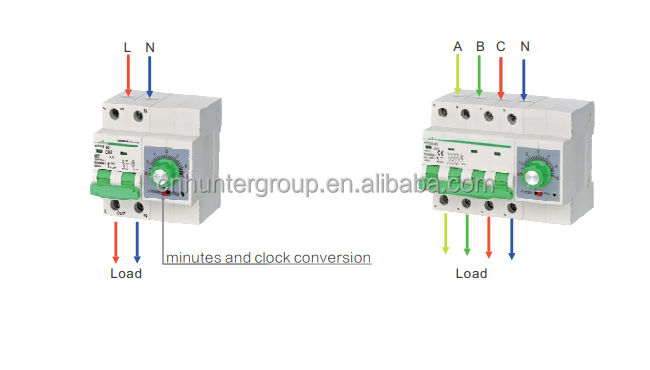

The 230V power supply line is connected above, the left line is connected to the fire line, and the right line is connected to the zero line.
The following is connected with the timer power supply “red and blue lines” and electrical equipment lines, such as: charger, electric fan, electric cooker, refrigerator, neon lights,
production equipment, household appliances, etc.;
Mini break on the left and timing release on the right for torsion
