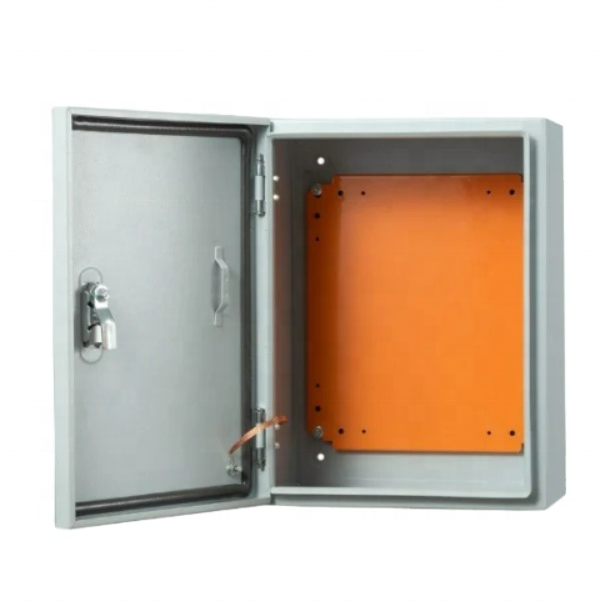

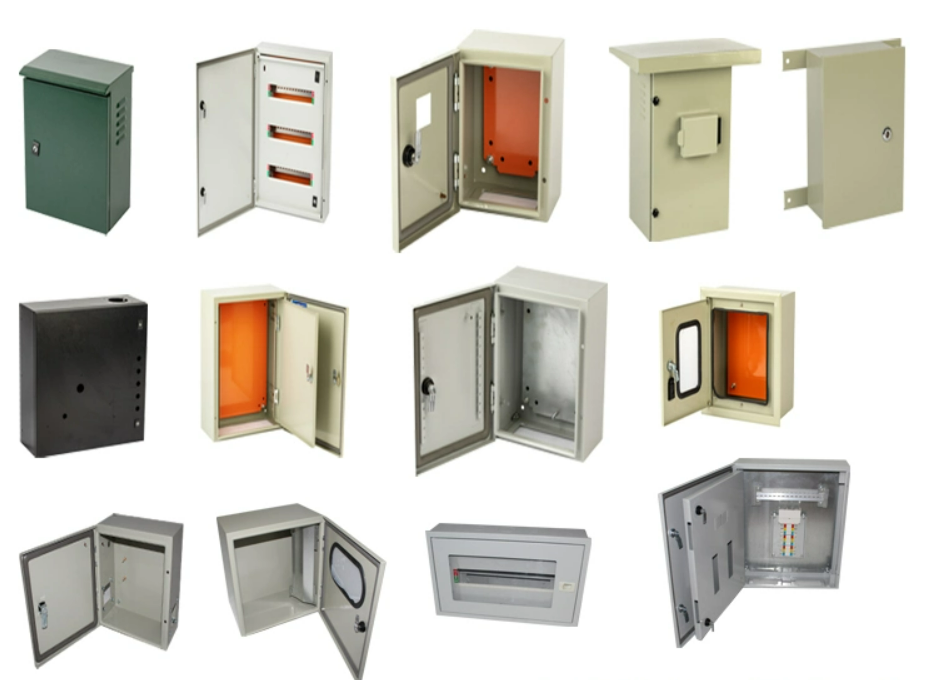

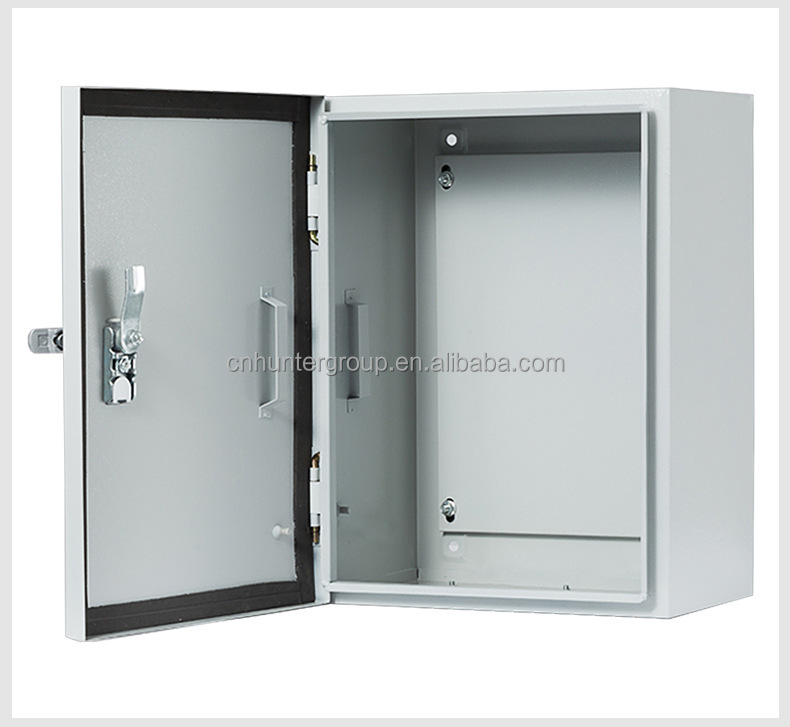

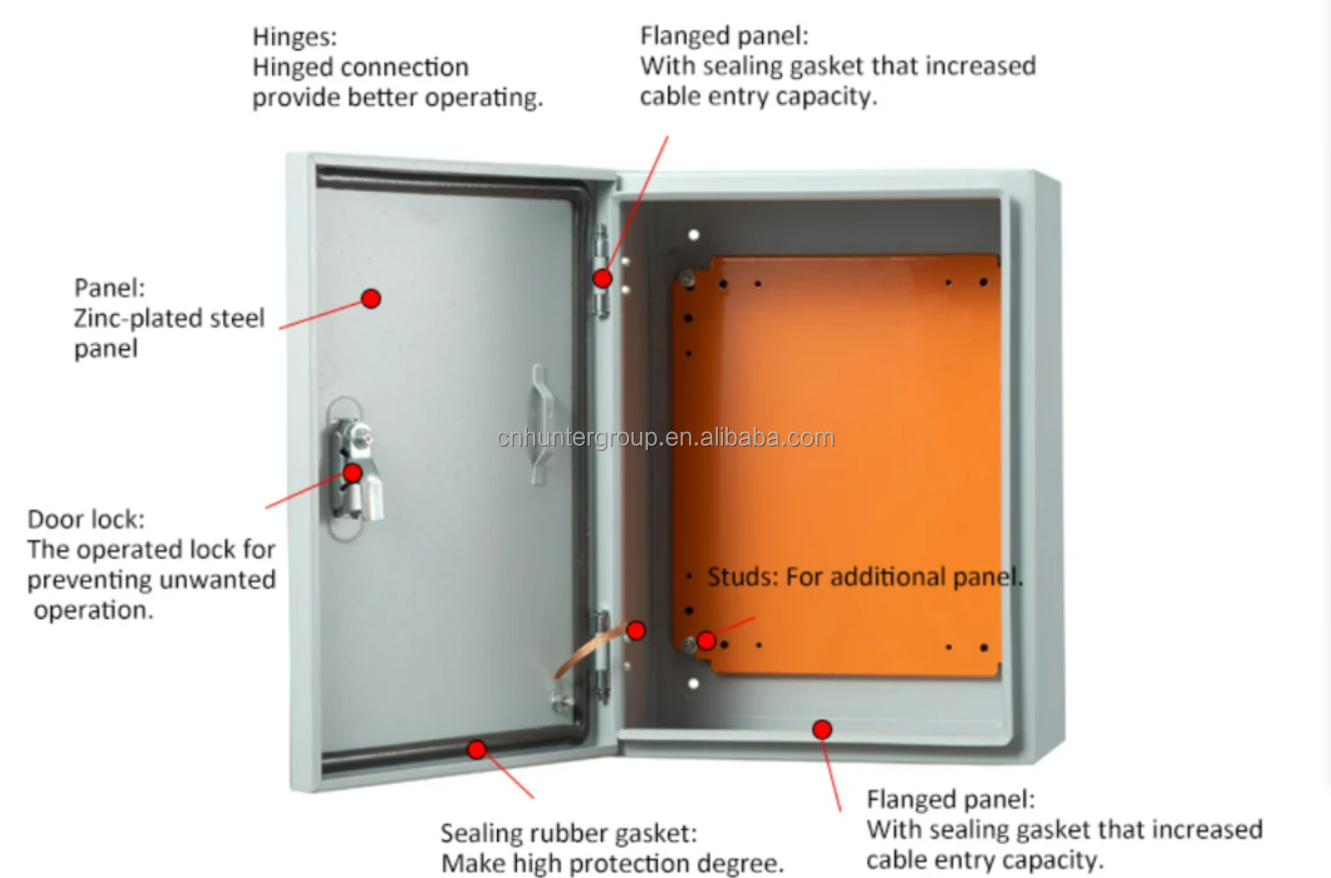

The JXF series power distribution box is a power distribution device designed and assembled into various control functions according to the model, specifications and quantity of the components.The products are widely used in industrial and civil buildings with a rated voltage of 380 V and below for power distribution, lighting distribution and automatic control in power systems at 50 Hz.JXFseries products are closed structure with wall mounted surface or inside the wall. The box is welded by cold-rolled steel plate, and the surface is treated with electrostatic plastic injection, which is both beautiful and protective . The box gate and the box are welded with grounding screws and connected with multiple soft wires, with good grounding protection IP30 for GB7251.3 and IEC60439-1.
Specification
|
Type
|
Iron material thickness
|
Outline dimension(mm)
|
Install dimension(mm)
|
Baseboard
|
Lock number
|
||||
|
high
|
wide
|
profound
|
high
|
wide
|
high
|
wide
|
|||
|
JXF-2520/14
|
1.2
|
250
|
200
|
140
|
290
|
150
|
170
|
158
|
1
|
|
JXF-3025/14
|
1.2
|
300
|
250
|
140
|
340
|
200
|
220
|
208
|
1
|
|
JXF-3025/18
|
1.2
|
300
|
250
|
180
|
340
|
200
|
220
|
208
|
1
|
|
JXF-3030/14
|
1.2
|
300
|
300
|
140
|
340
|
250
|
220
|
258
|
1
|
|
JXF-3030/18
|
1.2
|
300
|
300
|
180
|
340
|
250
|
220
|
258
|
1
|
|
JXF-4030/14
|
1.2
|
400
|
300
|
140
|
440
|
250
|
320
|
258
|
1
|
|
JXF-4030/20
|
1.2
|
400
|
300
|
200
|
440
|
250
|
320
|
258
|
1
|
|
JXF-5040/14
|
1.5
|
500
|
400
|
140
|
540
|
350
|
420
|
358
|
1
|
|
JXF-5040/20
|
1.5
|
500
|
400
|
200
|
540
|
350
|
420
|
358
|
1
|
|
JXF-5040/23
|
1.5
|
500
|
400
|
230
|
540
|
350
|
420
|
358
|
1
|
|
JXF-6040/14
|
1.5
|
600
|
400
|
140
|
640
|
350
|
520
|
358
|
2
|
|
JXF-6040/20
|
1.5
|
600
|
400
|
200
|
640
|
350
|
520
|
358
|
2
|
|
JXF-6040/23
|
1.5
|
600
|
400
|
230
|
640
|
350
|
520
|
358
|
2
|
|
JXF-6050/14
|
1.5
|
600
|
500
|
140
|
640
|
450
|
520
|
458
|
2
|
|
JXF-6050/20
|
1.5
|
600
|
500
|
200
|
640
|
450
|
520
|
458
|
2
|
|
JXF-6050/23
|
1.5
|
600
|
500
|
230
|
640
|
450
|
520
|
458
|
2
|
|
JXF-7050/16
|
1.5
|
700
|
500
|
160
|
740
|
450
|
620
|
458
|
2
|
|
JXF-7050/20
|
1.5
|
700
|
500
|
200
|
740
|
450
|
620
|
458
|
2
|
|
JXF-7050/23
|
1.5
|
700
|
500
|
230
|
740
|
450
|
620
|
458
|
2
|
|
JXF-6060/20
|
1.5
|
800
|
600
|
200
|
840
|
550
|
720
|
558
|
2
|
|
JXF-6060/23
|
1.5
|
800
|
600
|
230
|
840
|
550
|
720
|
558
|
2
|
|
JXF-6060/25
|
1.5
|
800
|
600
|
250
|
840
|
550
|
720
|
558
|
2
|
|
JXF-10080/20
|
1.5
|
1000
|
800
|
200
|
1040
|
750
|
920
|
758
|
2
|
|
JXF-10080/25
|
1.5
|
1000
|
800
|
230
|
1040
|
750
|
920
|
758
|
2
|
|
JXF-10080/30
|
1.5
|
1000
|
800
|
260
|
1040
|
750
|
920
|
758
|
2
|
